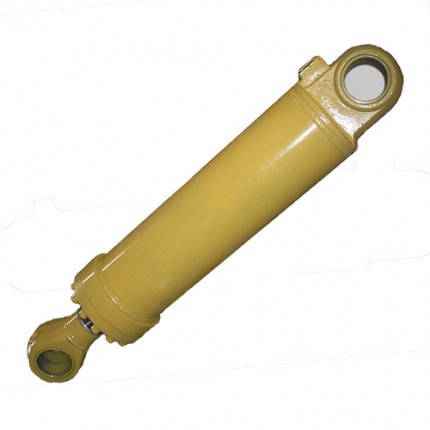

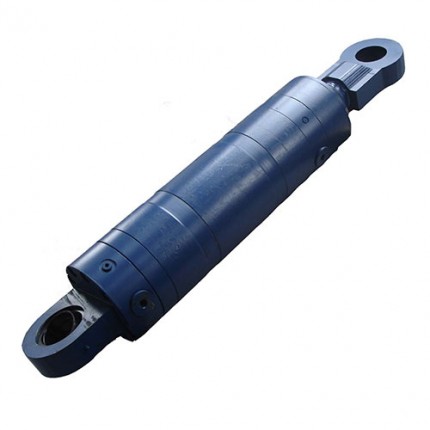

The HSG*01 series double-acting single-rod piston hydraulic cylinder is an actuator that uses hydraulic pressure to push the piston rod in both forward and reverse directions to drive other working parts to make reciprocate linear motion.The utility model features simple structure, reliable work, convenient assembly and disassembly, easy maintenance, buffering device and various connection modes.It is suitable for construction machinery, mining machinery, lifting and transportation machinery, metallurgical machinery and other machinery, etc.
Model description

Cylinder head, cylinder body connection mode

Connection type of piston rod end

Buffer area

Parameters

note：

1.speed ratioφ:Refers to the ratio of the effective area of the piston to the effective area of the piston rod cavity.。

2.max.stroke is φ=1.33，S=8D(cylinder bore);φ=1.46，S=10D(cylinder bore);φ=2时，S=12D(cylinder bore)。

3.when cylinder bore is Φ63、Φ80、Φ100、Φ125、Φ150、Φ160，speed ratio φ≤1.46，the cylinder head is connected by a snap ring

4.If the user's required S is greater than the maximum travel specified in the table, please contact our technical department.。

5.The minimum stroke S of the hinge connection is selected in accordance with Tables 5, 6, 7, and 8.

6.speed ratio of that with ▲is 1.7

Ordering instruction

The user can write the connection method number according to the "model description" as needed.(The last 4 digits in the "Model Description").Then refer to Figure 1 to Figure 4 according to the connection method of the rod end to determine the required structure. Refer to Table 5 to Table 8 according to the structure, cylinder diameter and speed ratio stroke to determine the shape and connection size.

Write the complete model and travel and installation distance when ordering:

Connection type

Connection type of piston rod end

earrings connection

Hinged shaft connection

End flange connection

Middle flange connection

Male thread connection at piston end



The rod end is an external threaded rod earring connection

earrings connection

Hinged connection

End flange connection

Middle flange connection

Male thread rod end connection



Female connection

earings connection

Hinged shaft connection

End flange connection

Middle flange connection

Female thread



Female thread rod end earings connection

Earing connection

Hinged shaft connection

End flange connection

Middle flange connection

female thread rod end earings connection
