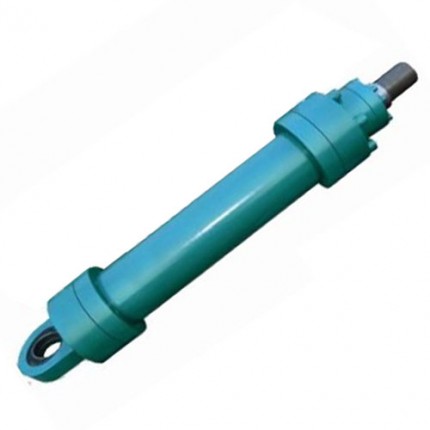

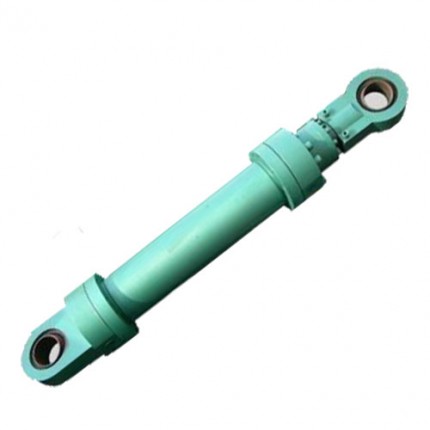

CD250/CG250series heavy-duty hydraulic cylinder

Video Display

Description

CD250/CG250 CD350/CG350 series heavy-duty hydraulic cylinder

This series of cylinders consists of 14 kinds of cylinder diameters, which are composed of 28 kinds of single-piston double-acting differential cylinders according to four speed ratios.In addition, the cylinder head flange type, the middle trunnion mounting type and the base mounting type can also be made into a double piston double acting constant speed cylinder, plus an endless buffer and buffer at both ends (using an adjustable flow valve) and the above 28 specifications constitute 384 varieties.

This series of products is installed in accordance with German standards and ISO3320. It is especially suitable for industrial sectors such as steel, casting and machinery manufacturing under harsh and heavy-duty conditions.

For special customization,please contact us.

Property

Model description

Technical performance and characteristics

Working pressure(MPa)	CD/CG250 serie：25，CD/CG350 serie：35
Applicable medium	mineral oil.organic phosphate and water glycol
Working pressure(℃)	-30~+100
Medium viscosity(cSt)	2.8~380
Operation speed(m/s)	0.5(can reach15m/s with special seals)
Seal	Dynamic seal: Type A uses V-ring seal set for high speed and high pressure; The T type adopts slip ring combination seal with a small coefficient of friction and is suitable for low speed and low pressure.
Cylinder head and cylinder tank connection type, vent valve	Type A: Threaded, flanged connection; Type B: welded structure at the bottom of the cylinder, threaded connection of the cylinder head. Check valve with vent plug at the end
Hydraulic oil mouth connection thread	All the caliber of the cylinder: GB metric fine thread, can also use the British pipe thread standard BSP Wyeth pipe thread, that is, China's cylindrical pipe thread G
Installation type	有A、B、C、D、E、F
Piston rod material	High tensile strength steel and stainless steel X22CrNi17, hard chrome plated on surfaces

Technical specifications

Piston upward thrust

CD/CG heavy-duty hydraulic cylinder
max. stroke and the total length of tolerance

Note: According to Euler's formula, the safety factor of the rod under the hinged structure and rigid guiding load is 3.5. For various installation types and various cylinder diameters under different working pressures, the piston rod is under bending stress ,(compression load).Allowable stroke under action , see the sample for details.

CD250/CD350 series threaded nail tightening torque when the cylinder head is screwed to the cylinder

Shape size

Differential heavy-duty hydraulic cylinder

CDC250C/CD250D Differential heavy-duty hydraulic cylinder

CD250E Differential heavy-duty hydraulic cylinder

CD250F Differential heavy-duty hydraulic cylinder

CD350A、CD350B Differential heavy-duty hydraulic cylinder

CD350C、CD350D 差动重载液压缸

CD350E Differential heavy-duty hydraulic cylinder

CD350F Differential heavy-duty hydraulic cylinder

CG250、CG350 heavy-duty hydraulic cylinder

GA type ball joint earrings, SA type bushing earrings

CD/CG250 hydraulic cylinder with displacement sensor

The hydraulic cylinder with displacement sensor designed and developed by our company on the basis of heavy-duty hydraulic cylinder can output precise control signals at any position within the selected stroke range. It can be applied to various production lines for program control. Hydraulic cylinder.
