A7V Variable Pump

Video Display

Description

Property

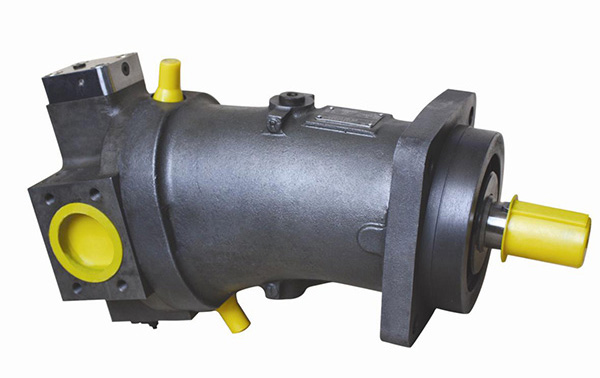

A7V Variable Pump

Products specification

Inclined shaft axial piston pump for open circuit hydrostatic transmission.The flow rate is proportional to the drive speed and displacement, and can be changed steplessly at a constant drive speed.The control range is complete and is used for every control and regulation function. It works with mineral oil and fire resistant liquids.

Structure features

Structure 1:High-performance rotary components and spherical hydraulic oil pan for automatic centering, low cycle speed and high efficiency

Having novel high-performance rotary components with improved technical data and spherical hydraulic oil pan with test,compact construction.

Model description

A7V

海洋液压

Pump model

Model specification

Variable form

Structural style

Diversion(from the shaft end)

Shaft extension

Port connection

With pressure closure(remote control)

Auxiliary component

A7V

20(0-20.5)

28(2.1-28.1)

40(0-40.1)

55(15.8-54.8)

58(0-58)

80(23.1-80)

78(0-78)

107(30.8-107)

117(0-107)

160(46.2-160)

250(0-250)

355(0-355)

500(0-500)

LV
(Constant power variable)

DR
(Constant pressure variable)

EP
(Electric control proportional variable)

HD
(Hydraulic control variable)

MA
Manual variable(with the handwheel)

SC
(Break variable)

NC
(Digital variable)

5.1

R
(Clockwise)

L
(Anticlockwise)

Z
(Multiple keys DIN5480)

S
(Multiple keys GB3478.1-83)

P
(Flat keys GB1096-79)

Pressure port(SAE flange:at side)

Inlet port(SAEflange:at side)

G
With pressure closure(remote control),for LV,EL and HD specification,when Vgmin=0,Sequence valve and base plate are ordered separately

D
Pressure port(thread connection,at side SAE):inlet port(SAE flange,at side SAE)

F
Constant pressure control,remote control(Sequence valve and base plate are ordered separately)

O(none)

Technical parameters

Working pressure of inlet port

Absolute pressure of inlet port:Pabs min—0.08 MPa Pabs max—0.2MPa

Viscosity：Vmin——10mm2/s Vmax——（short time）1000mm2/s

Optimum working viscoity：Vopt——16~36mm2/s

Working pressure range of outlet

Rated pressure: nominal pressurePN—35MPa Maximum pressure PMax—40MPa

Temperature range T：-25℃~+80℃

The maximum allowable pressure of the drain port: the highest comparable to the inlet port pressure is 0.5 bar, but not higher than the absolute pressure of 2 bar.
